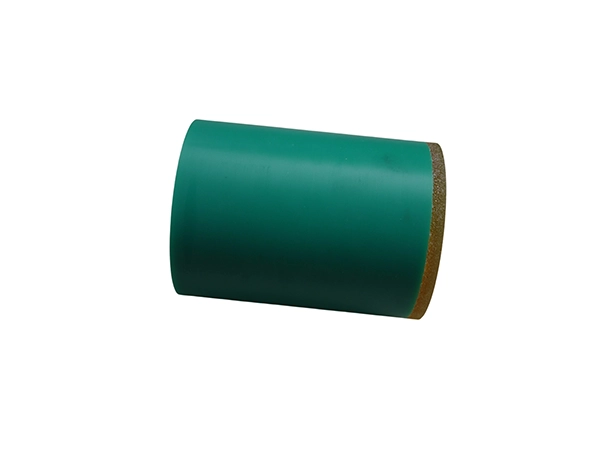

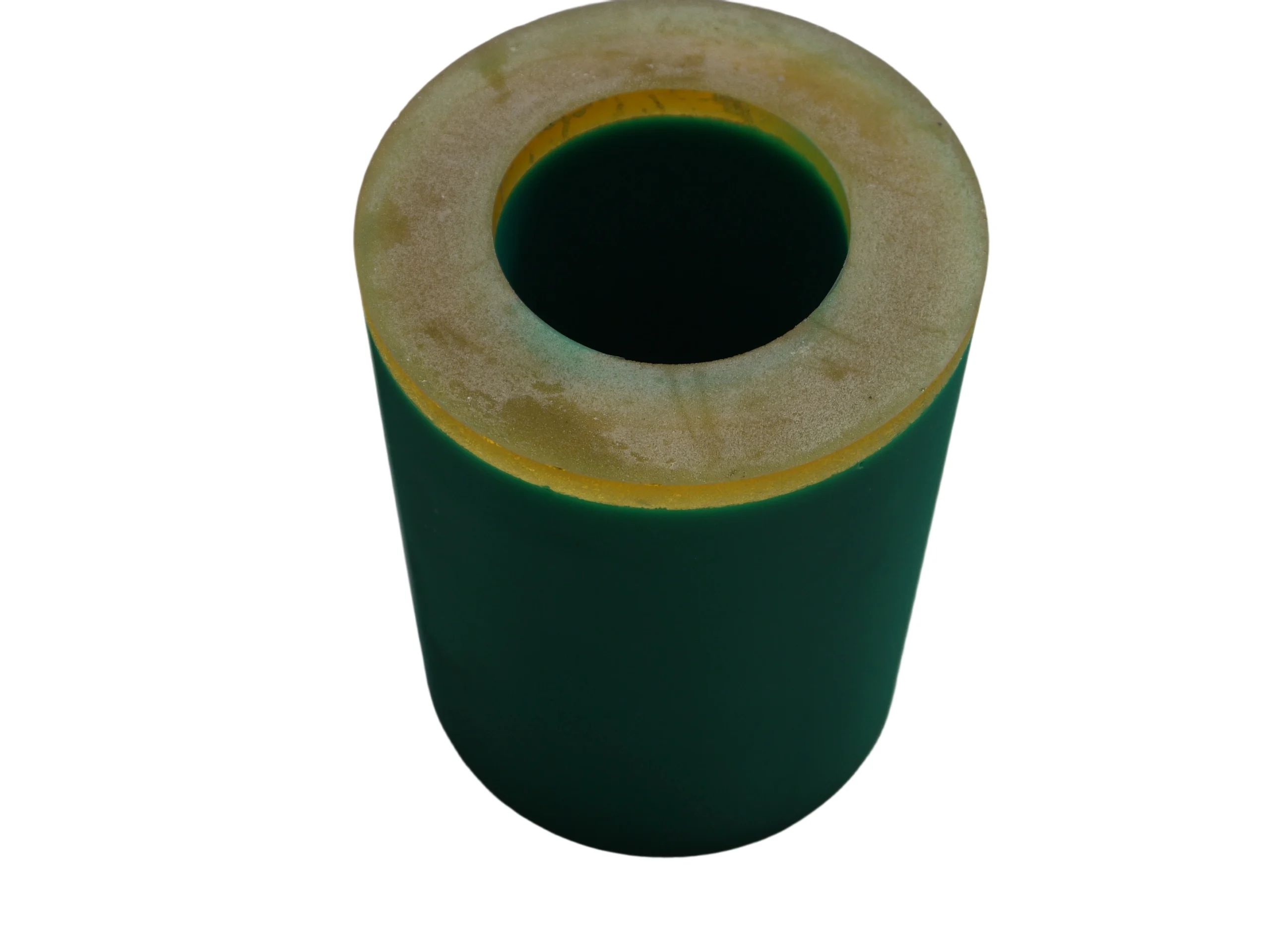

PU Tube Material for Hydraulic Seal Production

Cast PU Tube: Tailored for High-Performance Hydraulic Seal Machining



- 95±2 Shore A hardness: Wear-resistant for long-lasting hydraulic seal performance



- Multiple sizes (38*13*150 to 340*305mm): Fits diverse hydraulic seal production needs



- Chemical-resistant: Withstands mineral oils/seawater for harsh hydraulic environments



- Green/red/yellow options: Easy identification for hydraulic seal assembly lines



- Tailored for hydraulic seals: Matches static/dynamic seal application requirements



INDUSTRIES SERVED: Automotive , Material Handling, Agriculture, Manufacturing & Industrial Machinery





As a professional China manufacturer and supplier of PU tube for hydraulic seal production, we use high performance and hydrolysis-resistant polyurethane with a hardness of 95 ± 2 Shore A, which provides excellent physical properties. Its ability to withstand most common hydraulic fluids and oil-water emulsions makes it a highly versatile material for a wide range of seal applications.

Physical Properties

ItemStandardUnitValue
DensityGB/T533-2008g/cm³1.12
Hardness at 20°-Shore A95 +/-2
100% ModulusGB/T528-1998N/mm²11.5
300% ModulusGB/T528-1998N/mm²20.1
Tensile strengthGB/T528-1998N/mm43.4
Elongation at breakGB/T528-1998%457
Tear strengthGB/T529-1999N/m88.7
Rebound resilienceGB/T1681-1994%58
Compression setGB/T7759-1996%35
Akron abrasion lossGB/T1689-1998cm³/1.61km<0.03

Chemical Resistance of the PU Tube

- Resistance to Sea Water

This PU tube material is sea water resistance, making it ideal for marine seal components. It’s a top choice for offshore oil rig seals and coastal construction machinery seals, where saltwater corrosion often damages ordinary seal materials.

- Compatibility with HFA & HFB Fluids

The PU material stands out for its compatibility with HFA and HFB hydraulic fluids. This makes it safe for automotive seals and industrial automation seals industries where these fire-resistant fluids are widely used to ensure workplace safety.

- Resistance to Common Oils

It resists mineral oils, vegetable oils, and silicone oils effectively. This property makes it perfect for agricultural machinery seals (e.g., tractor hydraulic cylinder seals) and food-processing equipment seals (where vegetable oil-based lubricants are preferred).

- Stability with Biodegradable Oils

The PU tube material maintains stability against biodegradable hydraulic oils. It aligns with eco-friendly industrial trends, serving as a sustainable option for green-focused sectors like renewable energy equipment seals.

- Resistance to Ozone & Cold Oxygen

It also withstands ozone, ensuring long-term performance for outdoor seals like wind turbine hydraulic seals. Additionally, its cold oxygen resistance prevents brittleness, making it suitable for low-temp machinery seals (e.g., winter-use agricultural equipment seals).

cast-urethane-tubes

Specification of PU Rod & Tube Material

Product NameDimensions (OD*ID*L) mmHardnessColor
PU Rod33*15095+/-2 Shore AGreen/red/yellow
PU Tube38*13*15095+/-2 Shore AGreen/red/yellow
PU Tube48*22*15095+/-2 Shore AGreen/red/yellow
PU Tube58*27*15095+/-2 Shore AGreen/red/yellow
PU Tube65*35*15095+/-2 Shore AGreen/red/yellow
PU Tube70*40*15095+/-2 Shore AGreen/red/yellow
PU Tube68*37*15095+/-2 Shore AGreen/red/yellow
PU Tube78*47*15095+/-2 Shore AGreen/red/yellow
PU Tube80*50*15095+/-2 Shore AGreen/red/yellow
PU Tube88*52*15095+/-2 Shore AGreen/red/yellow
PU Tube90*60*15095+/-2 Shore AGreen/red/yellow
PU Tube98*62*15095+/-2 Shore AGreen/red/yellow
PU Tube100*70*15095+/-2 Shore AGreen/red/yellow
PU Tube105*75*15095+/-2 Shore AGreen/red/yellow
PU Tube108*67*15095+/-2 Shore AGreen/red/yellow
PU Tube110*80*15095+/-2 Shore AGreen/red/yellow
PU Tube118*77*15095+/-2 Shore AGreen/red/yellow
PU Tube120*70*15095+/-2 Shore AGreen/red/yellow
PU Tube122*95*15095+/-2 Shore AGreen/red/yellow
PU Tube128*87*15095+/-2 Shore AGreen/red/yellow
PU Tube130*75*15095+/-2 Shore AGreen/red/yellow
PU Tube130*80*15095+/-2 Shore AGreen/red/yellow
PU Tube130*95*15095+/-2 Shore AGreen/red/yellow
PU Tube133*97*15095+/-2 Shore AGreen/red/yellow
PU Tube143*107*15095+/-2 Shore AGreen/red/yellow
PU Tube150*125*15095+/-2 Shore AGreen/red/yellow
PU Tube153*117*15095+/-2 Shore AGreen/red/yellow
PU Tube163*127*15095+/-2 Shore AGreen/red/yellow
PU Tube170*132*15095+/-2 Shore AGreen/red/yellow
PU Tube173*132*15095+/-2 Shore AGreen/red/yellow
PU Tube188*142*15095+/-2 Shore AGreen/red/yellow
PU Tube198*152*15095+/-2 Shore AGreen/red/yellow
PU Tube208*180*15095+/-2 Shore AGreen/red/yellow
PU Tube240*200*15095+/-2 Shore AGreen/red/yellow
PU Tube250*215*15095+/-2 Shore AGreen/red/yellow
PU Tube320*280*15095+/-2 Shore AGreen/red/yellow
PU Tube330*290*15095+/-2 Shore AGreen/red/yellow
PU Tube340*305*15095+/-2 Shore AGreen/red/yellow

P.S. : The sizes are nominal. Weight &Unit Price is just for your reference  OD is 2-6mm bigger ,ID is 2-6 mm smaller and length is  from 155-170mm to assure enough machining allowance. The actual weight will be gauged and total amount will be recalculated before shipment.

 Main Applications: PU Tube for Versatile Static & Dynamic Seals Machining

- Static seals: Perfect for standard and custom flange seals, back-up rings, and gasket seals in high-pressure hydraulic presses. Its high extrusion resistance ensures a tight, leak-free seal, making it a go-to PU tube for static flange seals in industrial systems.

- Dynamic seals: Shines in wipers (keeping construction machinery hydraulic cylinders free of debris), O-rings (automotive transmission systems), and rotary seals (industrial robots). With low friction and wear, it extends seal lifespan—ideal as a low-friction PU tube for dynamic hydraulic seals.

- Specialized needs: Its water compatibility and excellent low-temperature characteristics make it suitable for cold-region agricultural equipment and water-based hydraulic systems, solving common issues like brittleness or swelling in extreme conditions.

  • Does your China factory provide sample testing for PU Tube?

    Yes, we offer free samples (with freight collect) so you can test compatibility with your seal production process.

  • What custom cast options are available for the tube for Hydraulic Seal?

    We offer custom OD (2mm~20mm), hardness (60A~95D), color, and many color options.

  • Can the PU Tube work with food-grade hydraulic fluids for special seal production?

    Absolutely. It is food-safe PU that meets FDA standards, suitable for hydraulic seals in food processing equipment.

  • Are you a manufacturer?

    Yes. We are manufacturer. Welcome to visit our factory.

  • Can you introduce your customized process ?

    Yes. The process includes Share needs → design & quote → prototype (opt) → production → delivery.

  • How do you control your product quality?

    We have 10 inspectors to carry out raw material inspection, process control ,first article inspection and final inspection.

  • How do you monitor the production process to avoid delayed delivery?

    We use the ERP system to execute orders, and can check the order status and expected delivery time at any time.

  • What is warranty of products?

    All of products with 3-6 months guarantee (except very frequently wearing parts).

  • How do you deal with after sales service?

    We will response in 24 hours with solutions such as replacement or reworking.

  • How do you deal with customers' molds?

    We have dedicated personnel to sort out and maintain molds regularly.

  • What about the lifespan of molds?

    20,000 times for compressions molds and 30,000 time for casting molds

  • How long can you keep customers' molds for free?

    Due to the large quantity of molds, we can keep the molds for free for 2 to 3 years even if no order.

  • If the molds are damaged or reach the lifespan , who will be responsible for it ?

    Customers only need to pay mold cost once. We will cover the cost if molds are damaged or reach the lifespan.
