- Steel mesh backing enables easy welding or bolting installation.
- Superior abrasion resistance outperforms standard rubber wear liners.
- Custom cast polyurethane ensures precise hardness and thickness.
- Flexible design contours to curved chutes and hopper surfaces.
- Factory direct pricing with fast sample delivery worldwide.
INDUSTRIES SERVED: Mining, Cement, Agriculture

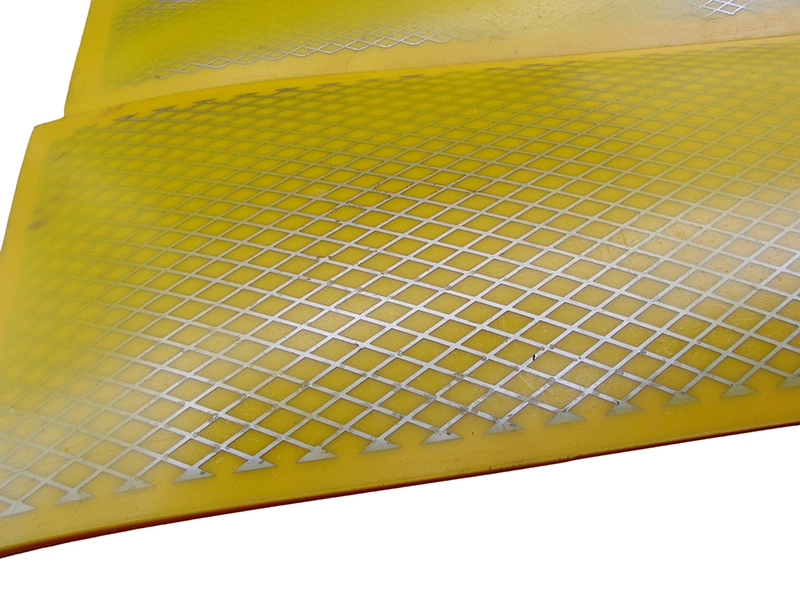

As a professional China manufacturer and supplier of polyurethane wear liner sheets with expanded metal mesh backing, we are dedicated to providing industrial wear solutions that extend equipment life. Our liners are manufactured using high-grade prepolymers through a hot casting process, bonding the polyurethane securely to a robust expanded steel mesh. This unique structure combines the exceptional abrasion and impact resistance of polyurethane with the structural rigidity and installation versatility of steel. Unlike solid steel liners, our PU sheets offer noise reduction and are significantly lighter, making them easier to handle.
These wear liners are essential for industries dealing with abrasive bulk materials. They are widely utilized in mining and mineral processing, grain handling, concrete and aggregate plants, power generation, and cement production. Specifically, they are installed in transfer chutes, hoppers, bins, vibrating screens, and truck beds to prevent structural damage caused by sliding abrasion and impact from raw materials.
| Parameter | Options | Typical Use |
|---|---|---|
| Sheet Size | 4' x 8', 4' x 10', Custom cuts | Custom size polyurethane liner sheets for specific chute dimensions |
| Total Thickness | 8mm, 10mm, 12mm, up to 50mm | Heavy duty polyurethane wear liner for high-impact zones |
| Mesh Type | Standard Expanded, Flattened | Weldable steel mesh backing for secure retrofitting |
| Hardness (Shore A) | 60A - 95A (Standard: 85A-90A) | High abrasion resistant PU sheets for mining aggregate |
| Color | Red, Yellow, Blue, Green, Black | Color coded wear liners for maintenance tracking |
| Backing Position | Center embedded or Bottom bonded | Steel backed polyurethane sheets for bolt-on applications |
| Surface Finish | Smooth, Ribbed, Ceramic Chip | Ceramic embedded polyurethane liner for extreme wear service |
- Lining discharge chutes in mining to prevent steel structure wear.
- Protecting grain elevator spouts and turnheads from sliding abrasion.
- Covering vibrating screen decks to reduce noise and protect steel.
- Lining concrete mixer hoppers and aggregate bins for longevity.
- Refurbishing worn-out sand and gravel wash plant feed boxes.
- Protecting conveyor skirt boards and transfer points from impact.
- Expanded metal allows liners to be tack-welded or bolted securely.
- Significantly lowers operation noise compared to bare metal chutes.
- Polyurethane resists oil, grease, and corrosion better than rubber.
- Lightweight structure reduces dead load on existing equipment frames.
- Formulable flexibility allows installation on curved or irregular surfaces.
- Lower friction coefficient promotes material flow and prevents clogging.
- Competitive Price: Direct manufacturing costs ensure the best market value.
- Strict Parameters: We provide detailed datasheets and wear index reports.
- Bond strength: Outperforms competitors in abrasion resistance and mesh-polyurethane bond strength.
- After-sales Service: Technical guidance available for installation and maintenance.
- Sample Policy: Free small samples provided to test material bonding.
- Low MOQ: Flexible ordering supports both pilot tests and bulk projects.
Case 1: The Aggregate Solution
A quarry client faced frequent downtime due to steel chute failure. We supplied 12mm steel expanded mesh backing polyurethane wear liner sheets. The weldable mesh allowed quick retrofitting. The result was a 300% increase in wear life, significantly boosting their ranking among local suppliers for efficiency.
Case 2: Grain Handling Efficiency
A grain terminal struggled with sliding abrasion in curved spouts. Our flexible mesh-backed liners contoured perfectly to the bends. The low friction PU surface improved flow rates, and the client was pleased with our responsive after-sales service regarding installation advice.
‘
When selecting the right liner, consider these factors:
- Budget & Testing: Request a sample to verify the bond strength before committing to a full order.
- Identify Wear Type: Is it sliding abrasion (requires harder PU) or impact (requires softer, thicker PU)?
- Installation Method: Choose expanded mesh for welding or solid steel plate for bolting.
- Thickness Selection: Heavier material flow requires thicker liners (e.g., 20mm+) to maximize service life.
- Environmental Factors: Check if UV resistance or hydrolysis resistance is required for outdoor/wet use.
Yes, the steel expanded mesh backing allows you to use plug welds or tack welds to secure the liner to your substrate.
We provide technical parameters (DIN abrasion loss, tensile strength) and can ship a physical sample for your inspection.
Yes, we offer custom casting for irregular shapes with detailed drawings provided by clients.
Yes. We are manufacturer. Welcome to visit our factory.
Yes. The process includes Share needs → design & quote → prototype (opt) → production → delivery.
We have 10 inspectors to carry out raw material inspection, process control ,first article inspection and final inspection.
We use the ERP system to execute orders, and can check the order status and expected delivery time at any time.
All of products with 3-6 months guarantee (except very frequently wearing parts).
We will response in 24 hours with solutions such as replacement or reworking.
We have dedicated personnel to sort out and maintain molds regularly.
20,000 times for compressions molds and 30,000 time for casting molds
Due to the large quantity of molds, we can keep the molds for free for 2 to 3 years even if no order.
Customers only need to pay mold cost once. We will cover the cost if molds are damaged or reach the lifespan.
