- Superior abrasion resistance significantly extends service life over rubber.
- Optimized hydrolysis resistance ensures stability in wet slurry environments.
- Custom cast designs perfectly replace OEM parts for major brands.
- Lightweight polyurethane reduces energy consumption and motor load.
- Factory direct supply offers fast delivery and competitive project costs.
INDUSTRIES SERVED: Mining, Cement, Metallurgy
As a dedicated China manufacturer and supplier of mining consumables, we specialize in high-performance flotation wear polyurethane components. Utilizing advanced hot-casting technology and premium prepolymers, we engineer rotors, stators, and diffusers that withstand the harsh conditions of mineral processing. Unlike traditional rubber, our custom cast polyurethane offers a tighter molecular structure, providing exceptional resistance to sliding abrasion and impact. We control the entire production process, ensuring consistent quality and dimensional accuracy for every batch we ship gloablly.

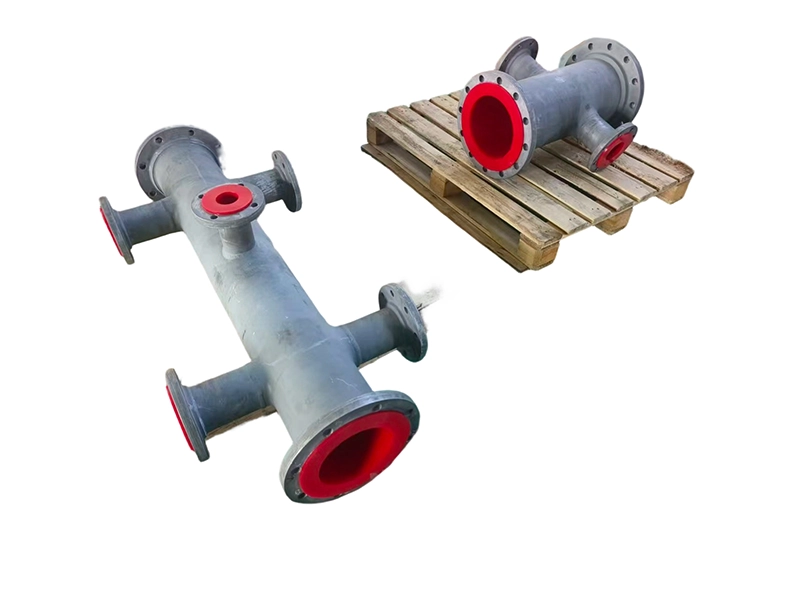

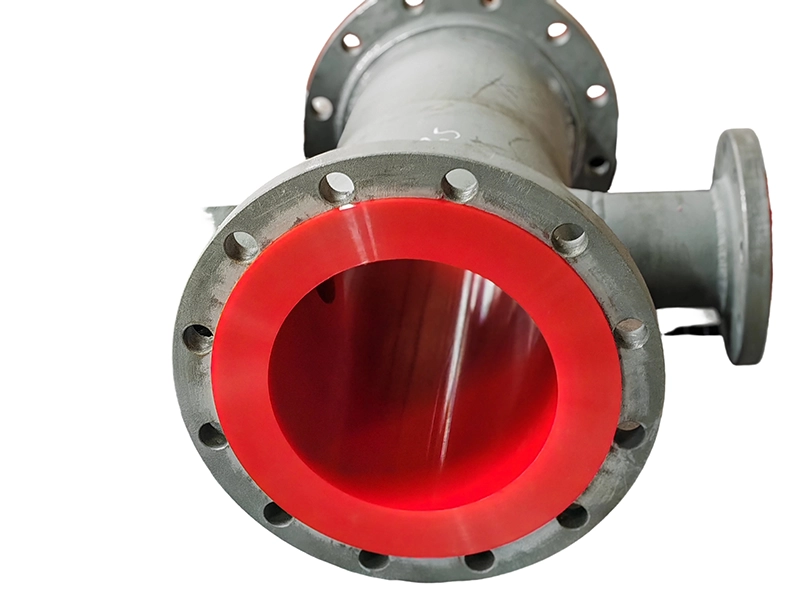

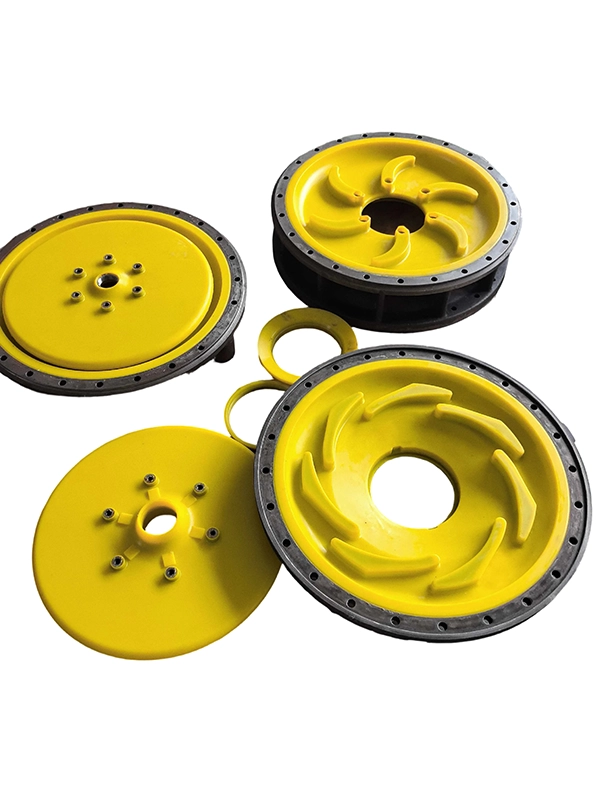

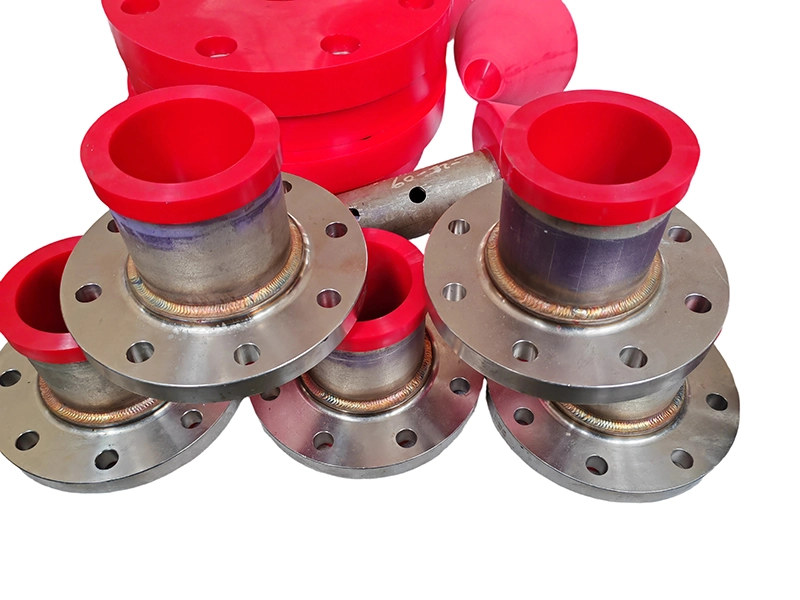

Our wet and dry end wear components include rotors, impellers, diffusers, hoods, dispersers, stators, guards, base plates, bearing stands, draft tubes and standpipes. These components are critical in the mining and beneficiation industries. They are primarily used in flotation cells ,pipe and cyclone lining for separating valuable minerals like copper, gold, molybdenum, and lithium from ore. Our polyurethane parts are also widely applied in coal preparation plants, potash fertilizer production, and aggregate washing facilities where keeping the slurry in suspension and generating fine bubbles is essential for recovery rates.
| Component Type | Customization detail | Typical Use |
|---|---|---|
| Rotor / Impeller | Open or semi-open designs, 3-8 blades | Polyurethane flotation impellers for copper ore slurry |
| Stator / Diffuser | Multi-finger designs, segmented parts | Replaceable polyurethane stators for mechanical cells |

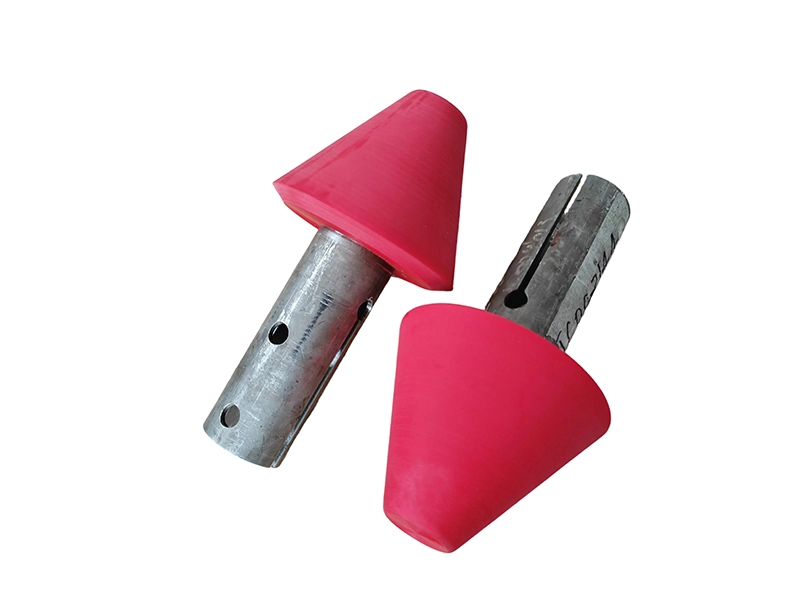

| Hardness | 55A to 95A (Standard 85A-90A) | Abrasion resistant flotation parts for coarse feed, Dart Valves & Seals, Polyurethane Wear Plates and Bars |
| Connection | Steel insert, Keyway, Flange bolt | Wemco style polyurethane rotor replacement parts, standard pipes |
| Size Constraints | From 5 cubic feet to 300+ m³ cells | Large flotation machine spare parts for high volume |
| Additives | UV stabilizers, Hydrolysis inhibitors | Hydrolysis resistant PU components for chemical tanks |
- Agitating slurry in mechanical flotation cells to separate valuable minerals.
- Directing flow patterns in tank cells to optimize bubble generation.
- Protecting the tank bottom and sidewalls from coarse particle abrasion.
- Replacing heavy rubber-lined steel parts to reduce maintenance downtime.
- Operating in acidic or alkaline environments in chemical processing plants.
- Exceptional wear resistance reduces replacement frequency and maintenance costs.
- Corrosion and hydrolysis-resistant, ideal for long-term wet environment use.
- High buoyancy-to-weight ratio optimizes flotation efficiency in mining processes.
- Steel-reinforced design boosts structural integrity for heavy-load applications.
- No rust or bolt locking issues, unlike metal alternatives in wet conditions.
- Custom cast precision ensures perfect fit with existing flotation equipment.
- Competitive Price: Our efficiency allows us to offer the best value in the mining sector.
- Strict Parameters: We adhere to tight tolerances ensuring seamless installation.
- Outperforms rubber/metal components in wear life and corrosion resistance.
- After-sales Service: Technical experts are available to guide optimizing cell performance.
- Sample Policy: We provide a material sample or trial unit for onsite testing.
- Low MOQ: We accommodate small trial orders to prove performance before bulk buy.
Case 1: Extending Life in Copper Mining
A copper mine was changing rubber stators every 4 months. We introduced our heavy-duty polyurethane stators. The wear life extended to 12 months, reducing shutdown costs. This success helped boost our supplier ranking within their procurement system.
Case 2: Energy Saving in Gold Processing
A client complained about high energy costs. We replaced steel impellers with our lightweight cast polyurethane rotors. The reduced weight lowered the motor amp draw by 15%, and our after-sales service team helped fine-tune the speed for better recovery.
‘
- Assess working environment: Choose corrosion-resistant options for saltwater/chemicals.
- Match hardness to wear level: 80A-95A for low wear; 60D-75D for high-abrasion mining. See how to choose right hardness.
- Confirm equipment specs: Provide CAD files for custom cast perfect fit with flotation cells.
- Calculate load/buoyancy needs: Select density (1.0-1.3 g/cm³) based on application.
- Prioritize reinforcement: Opt for steel-reinforced components for heavy-load scenarios.
- Test samples: Verify compatibility, wear resistance, and corrosion performance first.
Yes, as a manufacturer, we have a full engineering team. We can reverse engineer from a physical sample or build molds from your drawings.
Polyurethane generally offers better abrasion resistance, supports more intricate shapes (custom cast), and resists swelling from oils/reagents better than standard natural rubber.
The service life of polyurethane flotation parts varies by operating conditions (e.g., chemical exposure, ore abrasion), usage intensity, and maintenance practices. With their exceptional wear resistance, these parts usually last 2–5 years under normal use—far longer than rubber or metal alternatives—reducing downtime and replacement costs.
Polyurethane flotation parts are precision-engineered to optimize three key processes: uniform turbulence distribution, robust froth generation, and reliable particle suspension. They form a stable, controlled froth layer that traps valuable minerals effectively, slashing particle loss and maximizing separation efficiency for higher mineral recovery rates.
Yes. We are manufacturer. Welcome to visit our factory.
Yes. The process includes Share needs → design & quote → prototype (opt) → production → delivery.
We have 10 inspectors to carry out raw material inspection, process control ,first article inspection and final inspection.
We use the ERP system to execute orders, and can check the order status and expected delivery time at any time.
All of products with 3-6 months guarantee (except very frequently wearing parts).
We will response in 24 hours with solutions such as replacement or reworking.
We have dedicated personnel to sort out and maintain molds regularly.
20,000 times for compressions molds and 30,000 time for casting molds
Due to the large quantity of molds, we can keep the molds for free for 2 to 3 years even if no order.
Customers only need to pay mold cost once. We will cover the cost if molds are damaged or reach the lifespan.
