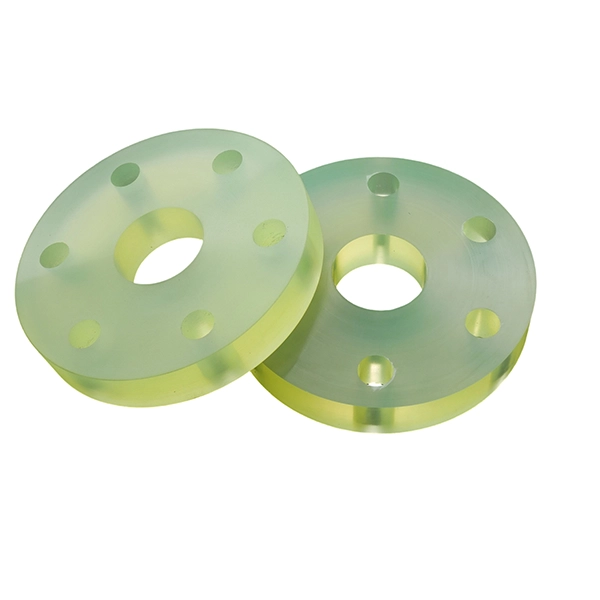

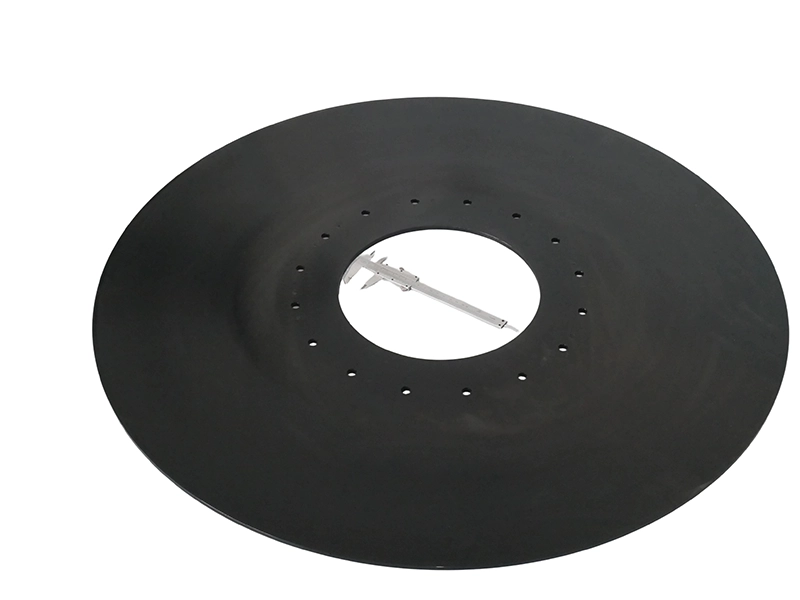

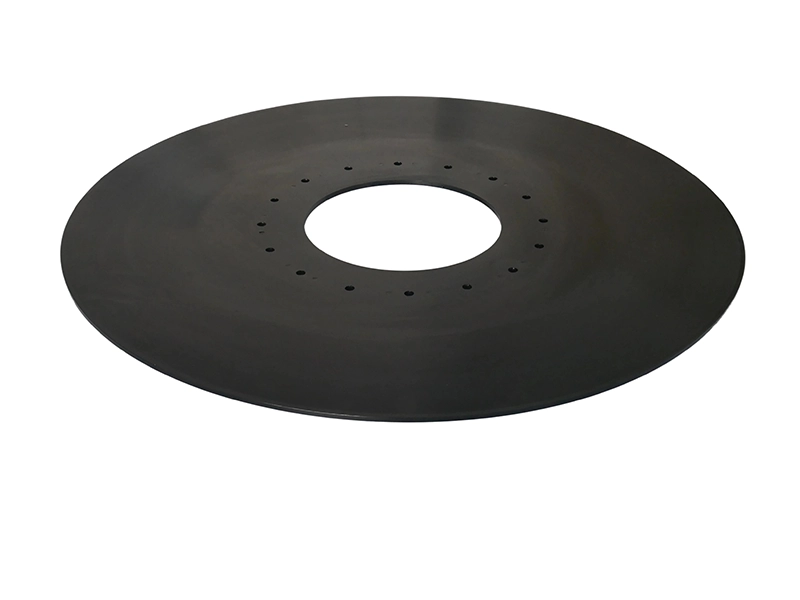

Polyurethane guide discs for pipeline pigs are critical components used in pigging systems to guide and stabilize the pig as it travels through pipelines. As a China polyurethane manufacturer and supplier, we produce high-quality cast polyurethane guide discs designed for extreme wear environments such as oil, gas, and chemical pipelines. The discs are manufactured using high-performance liquid cast polyurethane, offering excellent abrasion resistance, tear strength, and dimensional stability. The guide disc outer diameter is typically close to the pipe inner diameter, allowing the pig to travel smoothly while absorbing impact and maintaining alignment inside the pipeline.
Our polyurethane guide discs are widely used in pipeline pigging operations across many industries. They are commonly installed on mandrel pigs used in oil and gas transmission pipelines, petrochemical plants, water pipelines, and refinery cleaning systems. These components can be integrated into OEM pigging tools or used as replacement wear parts for existing pig assemblies. Factories and pipeline maintenance contractors often choose polyurethane discs because they combine flexibility, wear resistance, and impact protection during long-distance pigging runs.
Customization Options:
Custom Parameter
Options / Specification Range
Primary Application / Scenario
Outer Diameter (OD)
2 inches to 48 inches (and above)
Custom pig assembly for large-diameter crude oil pipelines.
Hardness (Shore A)
70A, 80A, 90A, 95A
Softer discs for sealing; harder discs for abrasive environments in mining slurry lines.
Thickness / Profile
Standard & Custom profiles
Guiding and centering bi-directional pigs in multi-diameter pipelines.
Polyester for oil resistance; Polyether for wet or acidic service.
Color
Standard (Yellow, Red) or Custom
Color-coding for easy identification of pig type and size in field operations.
Core Reinforcement

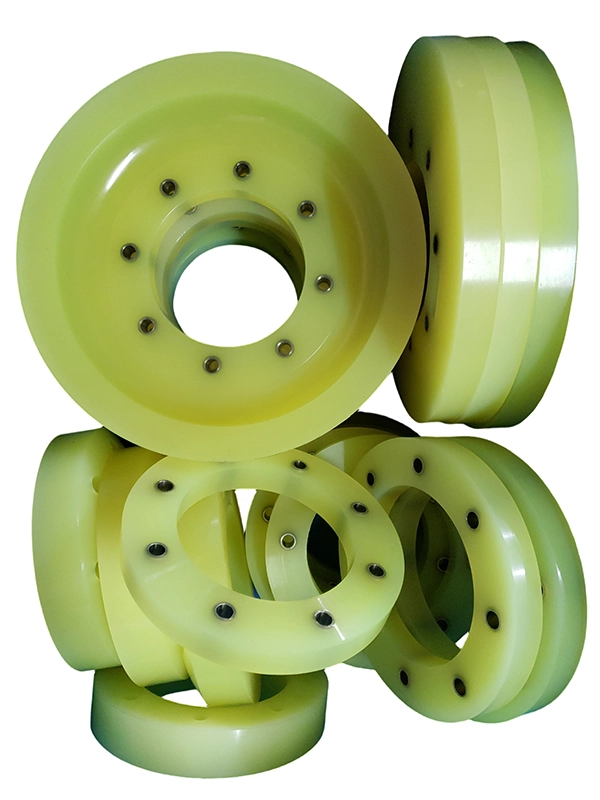

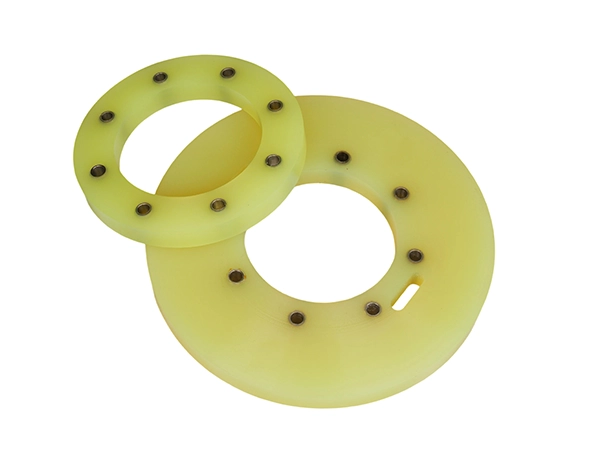

With or without metal inserts
Added structural integrity for high-pressure cleaning pig applications.
Application of Polyurethane Guide Discs
- Used primarily to centralize the pig body within the pipeline, preventing "nose-diving" and ensuring even wear of sealing discs .
- Essential for guiding the pig through pipeline features such as sharp bends (1.5D radius), tees, and full-bore valves without getting stuck .
- Employed in bi-directional (bi-di) pigs for applications where the tool must travel back and forth for flooding, cleaning, and dewatering .
- In multi-diameter pipelines, specially designed guide discs or wheeled supports help maintain a constant seal and prevent the pig from losing differential pressure .
- They act as a spacer between sealing discs, providing structural stability to the pig train and supporting the weight of heavier inspection or cleaning tools.
Advantages of Polyurethane Guide Discs
- Superior Abrasion Resistance: High-grade polyurethane withstands the abrasive action of sand, rust, and debris, significantly outlasting conventional materials .
- Excellent Tear Strength: Resists tearing and chunking out when passing through pipe protrusions or girth welds, ensuring the pig completes its run .
- Chemical & Oil Resistance: Formulated to resist swelling and degradation from hydrocarbons, maintaining tight tolerances even after days of immersion in crude oil .
- High Elastic Memory: Allows the disc to flex and conform to ovalities and obstructions, then return to its original shape without taking a compression set .
- Consistent Friction Performance: Provides predictable friction coefficients, which helps in accurately calculating the differential pressure required to drive the pig through the line
Why Choose Our Polyurethane Guide Discs?
- Factory-direct price advantage from an experienced China polyurethane manufacturer.
- Optimized material parameters outperform standard rubber discs in wear resistance.
- Sample testing available to verify performance before mass order.
- Low MOQ supports distributors, pipeline service companies, and OEM factories.
- Stable supply chain for long-term pipeline maintenance projects.
- Reliable after-sales service including technical support and installation guidance.
Case Studies: How Polyurethane Guide Discs Solved Client Challenges
Case Study 1: Extending Run Distance in Natural Gas Line A client operating a 24-inch dry gas pipeline was experiencing sealing disc failure after just 200km, leading to frequent operational stops. We supplied our high-abrasion resistant guide and sealing discs with optimized hardness . The new discs successfully completed runs exceeding 500km, dramatically reducing the number of pigging runs needed and cutting operational costs .
Case Study 2: Navigating a Multi-Diameter Subsea Pipeline An offshore operator needed a pig to pass through a 16-inch to 20-inch multi-diameter line. Standard rigid discs were causing the pig to lose seal and stall. We provided a set of custom cast guide discs with a higher elongation percentage. The flexibility allowed the pig to remain centralized through the diameter changes, maintaining a perfect seal and successfully dewatering the line in a single pass .
Case Study 3: Reducing Procurement Costs for a Maintenance Contractor A pipeline maintenance agent was struggling with the high costs of importing guide discs for bi-di pigs. We partnered with them as their exclusive supplier, offering a low MOQ trial order followed by volume discounts. By switching to our factory-direct polyurethane discs, they reduced their spare parts costs by 35% while maintaining the same performance levels
Selection Guide of Polyurethane Guide Discs
When selecting polyurethane guide discs for pipeline pigs, engineers typically consider several key factors:
1. Pipeline Inner Diameter The disc outer diameter should be slightly smaller than the pipe inner diameter to allow smooth entry and travel through the pipeline.
2. Hardness Selection 60–75 Shore A works for flexible pipelines and tight bends, while 80–95 Shore A provides better wear resistance for long pipelines.
3. Pig Type Compatibility Confirm whether the disc will be used on mandrel pigs, bidirectional pigs, or custom pigging equipment.
4. Pipeline Medium Crude oil, gas, chemicals, or water pipelines may require different polyurethane formulations.
5. Pigging Distance Long-distance pipelines often require thicker discs or reinforced structures to extend service life.
What is the difference between a guide disc and a sealing disc?
Guide discs (or guiding discs) are primarily designed to centralize the pig in the pipe and support its weight, preventing it from sagging. Sealing discs are designed to create a tight seal against the pipe wall to maintain differential pressure. Some discs can perform dual functions
How do I know what hardness (Shore A) I need for my Urethane Guide Discs?
Standard guide discs are often 85A Shore, which offers a good balance of wear and flexibility . If you are running in a very abrasive environment, a harder compound (90A-95A) is better. If you need to pass through severe ovalities or restrictions, a softer compound (70A-80A) may be required to allow the disc to flex more easily.
Can you provide discs that match my OEM part numbers and specifications?
Yes. As a manufacturer, we specialize in reverse engineering and custom casting. If you provide us with a sample, a drawing, or detailed parameters (ID, OD, thickness, hardness), we can manufacture PU Guide Discs that are dimensionally and physically equivalent to your original parts.
What is your typical lead time and MOQ?
Our lead time is typically 2-4 weeks, depending on the order size and customization. We pride ourselves on flexibility and offer a low MOQ to help clients test our products without a huge upfront investment. Please contact us with your specific requirements.
Are you a manufacturer?
Yes. We are manufacturer. Welcome to visit our factory.
Can you introduce your customized process ?
Yes. The process includes Share needs → design & quote → prototype (opt) → production → delivery.
How do you control your product quality?
We have 10 inspectors to carry out raw material inspection, process control ,first article inspection and final inspection.
How do you monitor the production process to avoid delayed delivery?
We use the ERP system to execute orders, and can check the order status and expected delivery time at any time.
What is warranty of products?
All of products with 3-6 months guarantee (except very frequently wearing parts).
How do you deal with after sales service?
We will response in 24 hours with solutions such as replacement or reworking.
How do you deal with customers' molds?
We have dedicated personnel to sort out and maintain molds regularly.
What about the lifespan of molds?
20,000 times for compressions molds and 30,000 time for casting molds
How long can you keep customers' molds for free?
Due to the large quantity of molds, we can keep the molds for free for 2 to 3 years even if no order.
If the molds are damaged or reach the lifespan , who will be responsible for it ?
Customers only need to pay mold cost once. We will cover the cost if molds are damaged or reach the lifespan.
