- Cast PU blades made to your holder profile, length, thickness and hardness.
- Sharp, beveled or rounded edges for textile, label, packaging and wallpaper printing.
- Polyester, polyether and application-specific systems selected from ink and cleaning chemistry.
- Trial lengths available for press compatibility checks.
- Inspection to agreed dimensions, hardness and edge requirements.

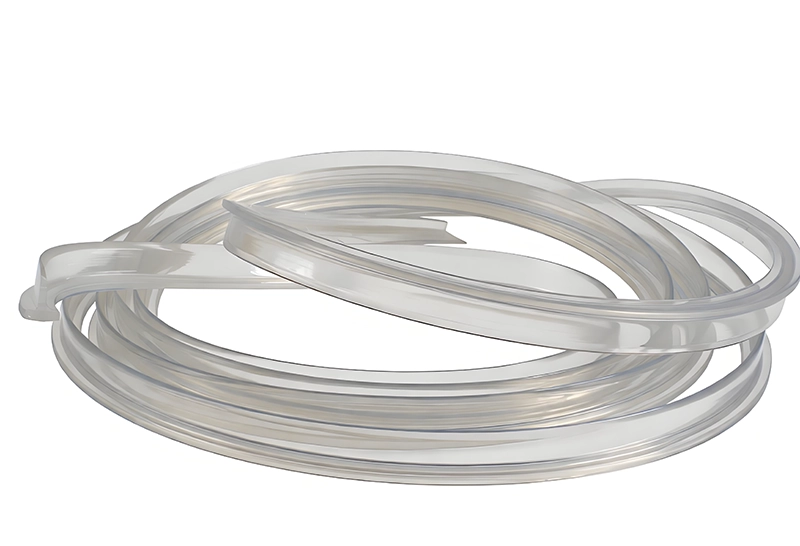

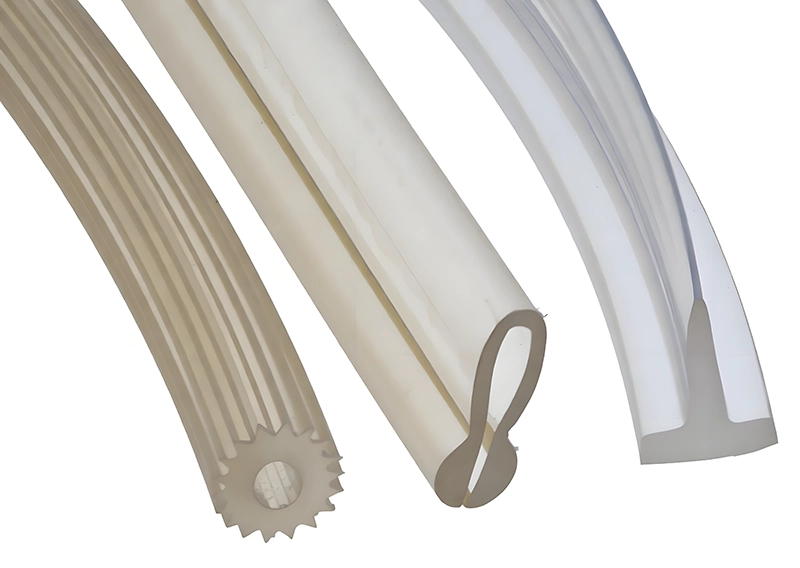

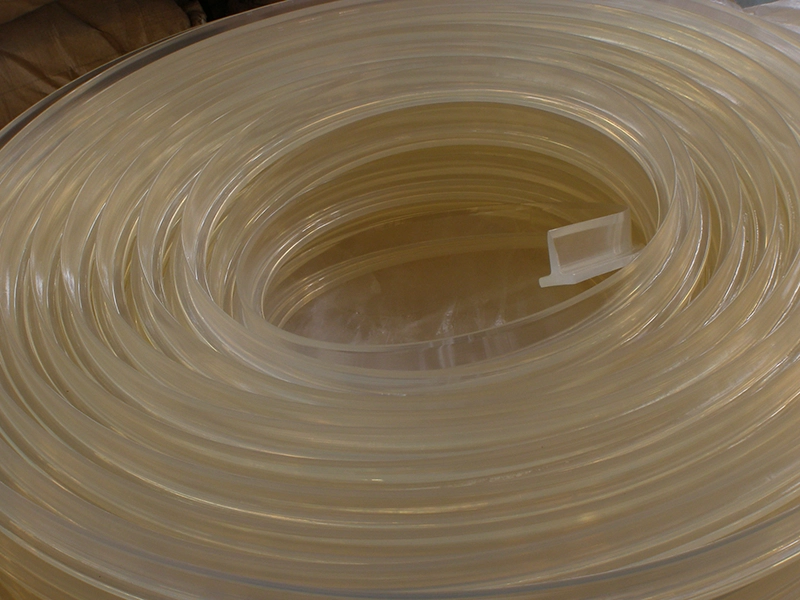

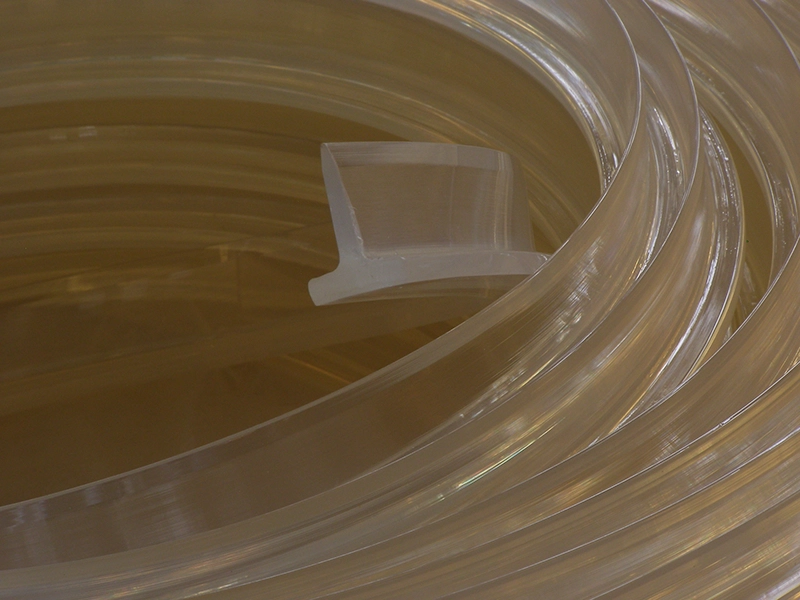

Pepsen manufactures standard and custom polyurethane T-squeegee blades for rotary screen printing. Cast polyurethane offers wear resistance and dimensional consistency, while the material system is selected for the ink chemistry, press speed, substrate, blade pressure and cleaning method.
These T-squeegee blades are used in textile, packaging, label and wallpaper printing. Compatibility with water-based, solvent-based or UV inks should be confirmed from the ink and cleaning-solvent data, followed by a production trial where possible.
| Customization Parameters | Available Options | Recommended Use |
|---|---|---|
| Length | 100-3,000 mm; custom cut lengths | Polyurethane T squeegee for wide-format rotary screen printing |
| Thickness | 1.5-8 mm | High-precision T scraper for fine-detail textile printing |
| Hardness (Shore A) | Shore 70A, 75A, 85A, 90A or 95A | Solvent-resistant polyurethane T squeegee for packaging printing |
| Material Grade | Polyether, polyester and application-specific cast PU | Selected after reviewing ink, solvent and cleaning chemistry |
| Blade Edge Type | Sharp, beveled or rounded | Selected for detail, deposit and substrate requirements |
| Color | Natural, black and custom colors | Grade identification or process-specific requirements |
– Direct manufacturing: Custom casting, cutting and finishing are coordinated through one supplier.
– Application-matched materials: Formulation, hardness and edge geometry are selected from the press and ink requirements.
– Trial support: Sample or short trial lengths can be discussed before production orders.
– Practical order quantities: Minimum quantity depends on size, formulation and finishing requirements.
– Technical support: Quotation documents confirm lead time, inspection criteria and applicable warranty terms.
– Engineering support: We help with hardness selection and edge geometry for the press.
– Textile printing: A medium-hardness polyurethane T-squeegee can provide stable contact and controlled ink transfer on fabric. Final hardness and edge geometry should be confirmed on the customer’s press.
– Packaging and label printing: An application-specific formulation can be evaluated for solvent or UV-ink systems where swelling, edge wear or print consistency is a concern.
– Match hardness to the process: Softer grades can conform to delicate or uneven substrates; harder grades provide greater edge stability. Confirm the range with a press trial.
– Choose the material grade: Polyester PU and polyether PU offer different chemical, hydrolysis and wear profiles. Review the actual ink and cleaning chemicals before selection.
– Confirm dimensions: Provide the press model, screen width, holder geometry and current blade dimensions.
– Select the edge profile: Sharp, beveled and rounded edges influence detail, deposit and wear behavior.
– Confirm lead time: Standard and custom lead times depend on formulation, dimensions, trial requirements and order quantity.
Pricing varies by length/thickness/quantity; contact us for a tailored quote with bulk discounts.
Yes – free 1–2 piece samples are available, with 1–2 week lead times for custom specs.
Absolutely – our solvent-resistant PU formulations work with solvent, water-based, and UV inks.
Standard orders ship within 7-10 days. Custom projects may require 2-3 weeks for tooling and quality assurance.
Yes. We are manufacturer. Welcome to visit our factory.
Yes. The process includes Share needs → design & quote → prototype (opt) → production → delivery.
We have 10 inspectors to carry out raw material inspection, process control ,first article inspection and final inspection.
We use the ERP system to execute orders, and can check the order status and expected delivery time at any time.
All of products with 3-6 months guarantee (except very frequently wearing parts).
We will response in 24 hours with solutions such as replacement or reworking.
We have dedicated personnel to sort out and maintain molds regularly.
20,000 times for compressions molds and 30,000 time for casting molds
Due to the large quantity of molds, we can keep the molds for free for 2 to 3 years even if no order.
Customers only need to pay mold cost once. We will cover the cost if molds are damaged or reach the lifespan.
