Cast Polyurethane Tubes

Custom Cast Flexible Urethane Rubber Tube

- Ester/ether-based options



- Very soft to very hard , Shore20A - 98A - 80D.



- Abrasion, chemical and UV resistance



- We offer both high and low-volume production runs!



-  Transparent ,black and 30+ ctocked color options



INDUSTRIES SERVED: Automotive , Material Handling, Agriculture, Manufacturing & Industrial Machinery





We are the manufacturer of both standard and custom polyurethane tubes(also known as hollow rod)in China since 2004. They are made with high quality thermoset polyurethane by casting and post-curing process, not TPU ( thermoplastic PU) tubing by extruding process.

With many existing molds, we cast solid rods as small as to 5mm diameter up to 600mm and larger, and literally hundreds of O.D. / I.D. tube sizes are also available. We offer quick delivery with competitive pricing. For special size requirements, PEPSEN. has the capability to custom mold a tube to your exact size specifications, with custom designed and built tooling.

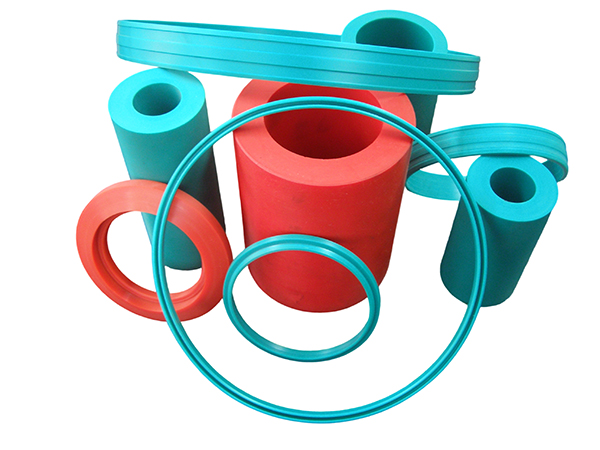

Polyurethane tubes are ideal choice for protective roller sleeves for industrial machinery, offering excellent wear resistance. Their shock-absorbing properties make cast urethane tubes effective for vibration isolators and sound dampening applications. PU tubes are also used in hydroforming pads as guide rollers and shock-resistant component.

Cast Polyurethane Tube vs. TPU (Thermoplastic Polyurethane) Tubing

Comparison DimensionsCPU (Cast Polyurethane) TubeTPU (Thermoplastic Polyurethane) Tubing
Processing MethodCast molding; requires 10-12 hours curing post-production Thermoplastic extrusion/injection; quick
Wear ResistanceExcellent (outperforms TPU); ideal for high-friction useGood; suitable for moderate-friction applications
Low-Temperature PerformanceSuperior flexibility down to -40℃Good (polyether-based TPU); may stiffen at -40℃+
Chemical ResistanceExcellent against oils, solvents, and weak chemicalsGood (varies by grade); polyether TPU resists hydrolysis
Flexibility & ElasticityHigh elasticity; maintains shape under repeated stressHigh flexibility; better ductility than CPU
Customization CapabilityHigh (custom hardness 10A-80D, dimensions,colors easily)Moderate (standard grades; custom specs need tooling)
Environmental CompatibilityNon-recyclable recyclable
High-Pressure DurabilityExcellent (handles up to 20.7MPa); good for hydraulic systemsGood (up to 10MPa); suitable for pneumatic systems
Production Lead TimeLonger (curing time + mold prep for custom orders)Shorter (fast extrusion; quick turnaround for standard sizes)
Typical ApplicationsHeavy machinery, mining slurry lines, hydraulic tubesMedical devices, food-contact tubes, consumer goods

Applications of Polyurethane Tube

- High - Temperature Applications
For high - temperature scenarios like engine parts and heating systems, choose heat - resistant polyurethane tubes. Withstand 160°C short - term. Recommended 70A - 90A hardness, 4 - 10mm wall, polyester - based , NDI, PPDI preferred.

- Low - Temperature Applications
In low - temp settings such as polar regions or cryogenic equipment, pick cold - resistant polyurethane pipes. Retain flexibility at - 50°C. 40A - 60A hardness, polyether - based preferred.

- Chemically Corrosive Applications
For chemically corrosive environments, select suitable polyurethane (ester or polyether) by medium. Increase wall thickness. Regularly check for corrosion.

- Mining Applications
In mining for slurry and tailings transport, use high - wear - resistant polyurethane tubes. 80A - 75D hardness, 6 - 12mm wall, 50 - 200mm ID.

cast-urethane-tubes

Key Tips for Polyurethane Tube Selection

custom-polyurethane-tubes

1. Material Selection

- Choose ester-based or ether-based polyurethane based on the type of medium.

- Consider the impact of temperature range and chemical environment on the material.

- Special applications may require special formulations (e.g., high-temperature or hydrolysis-resistant).

2. Performance Matching

- Select hardness based on load and flexibility requirements.

- Dimensional parameters must accurately match installation conditions and system requirements.

- Clearly specify special functions (e.g., antistatic, flame-retardant, or FDA compliance).

3. Application Environment

- Temperature, humidity, and UV exposure can affect material performance.

- Installation conditions and space constraints may influence tube selection.

- Special environments (e.g., high/low temperature or chemical corrosion) need special treatment.

4. Supplier Selection

- Choose experienced polyurethane tube manufacturers.

- Evaluate suppliers' customization capabilities and technical support.

- Verify suppliers' quality control systems and after-sales service.

Customization Process & Considerations for Polyurethane Tubes

- Design & Requirement Confirmation

Provide key parameters: application scenario, medium, temperature, pressure.

Define core performance indicators (wear resistance, chemical resistance, hardness).

Specify dimensions: inner diameter, outer diameter, wall thickness, length.

Confirm special requirements (FDA compliance, flame retardancy, antistatic).

- Material Selection & Formula Development

Choose base material (ester-based/ether-based) per needs.

Develop custom formula for specific performance.

Test samples to verify performance.

Adjust formula based on test results.

- Mold Design & Manufacturing

Design custom molds for specified dimensions.

High-precision mold processing (ensure size accuracy, surface finish).

Select mold material (aluminum/steel/others, based on batch size & cost).

Test molds before mass production to confirm size & quality.

- Production & Quality Control

Adopt advanced cast molding (ensure material uniformity, structural integrity).

Strictly control process parameters (temperature, pressure, curing time).

Conduct comprehensive quality tests (size, hardness, performance).

Provide complete quality reports.

- Customization Notes

Minimum order quantity required.

Longer lead time than standard products.

Higher cost than standard products (consider budget).

Provide detailed technical requirements to avoid misunderstandings/rework.

Recommend small-batch trial production before mass production.

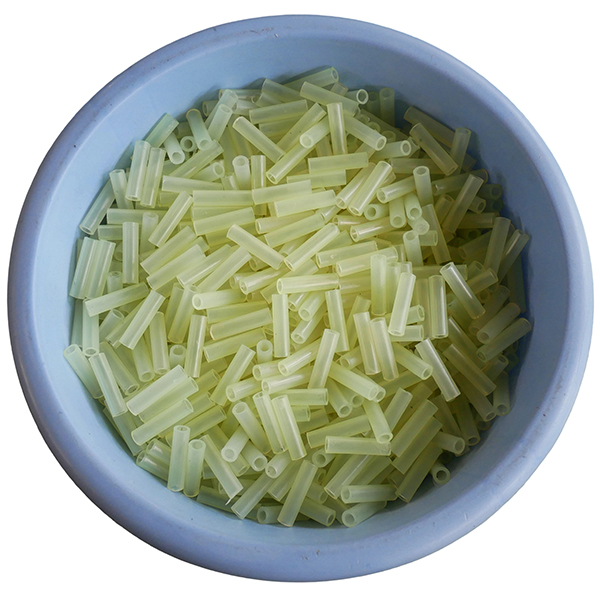

cast-PU-tube small-size

  • Are you a manufacturer?

    Yes. We are manufacturer. Welcome to visit our factory.

  • Can you introduce your customized process ?

    Yes. The process includes Share needs → design & quote → prototype (opt) → production → delivery.

  • How do you control your product quality?

    We have 10 inspectors to carry out raw material inspection, process control ,first article inspection and final inspection.

  • How do you monitor the production process to avoid delayed delivery?

    We use the ERP system to execute orders, and can check the order status and expected delivery time at any time.

  • What is warranty of products?

    All of products with 3-6 months guarantee (except very frequently wearing parts).

  • How do you deal with after sales service?

    We will response in 24 hours with solutions such as replacement or reworking.

  • How do you deal with customers' molds?

    We have dedicated personnel to sort out and maintain molds regularly.

  • What about the lifespan of molds?

    20,000 times for compressions molds and 30,000 time for casting molds

  • How long can you keep customers' molds for free?

    Due to the large quantity of molds, we can keep the molds for free for 2 to 3 years even if no order.

  • If the molds are damaged or reach the lifespan , who will be responsible for it ?

    Customers only need to pay mold cost once. We will cover the cost if molds are damaged or reach the lifespan.
