Replacing an established conveyor scraper blade requires more than matching dimensions or offering a lower unit price. This coal-conveyor project was treated as an engineering replacement program covering geometry, formulation, scale-up, inspection, and field-validation requirements.
The project therefore began as an engineering replacement program rather than a price-only sourcing exercise. Pepsen worked from the existing performance benchmark, developed and adjusted the polyurethane system, corrected scale-up defects during trial production, and validated the finished scraper blades before volume supply.

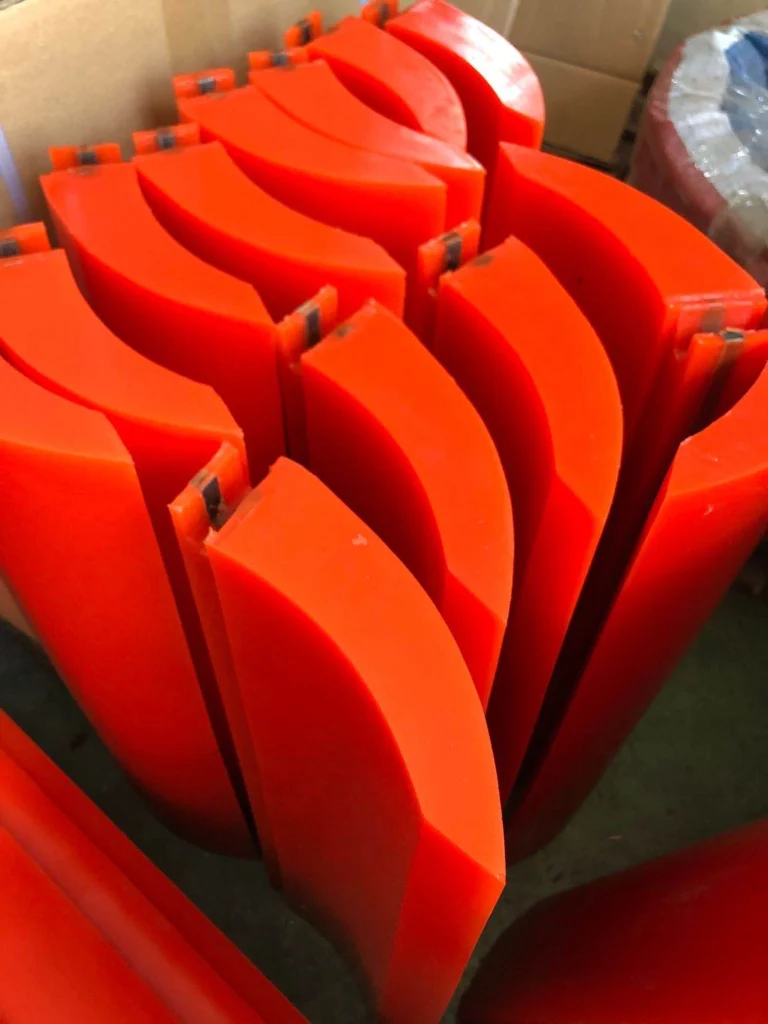

The available inspection report documents a lot of 150 red polyurethane scraper blades. It specifies a nominal finished size of 44.5 × 181 × 2191.6 mm, Shore 80–85A hardness, and 6061 aluminum components, with the inspected lot approved for shipment.
Project Snapshot
| Project Item | Documented Detail |
|---|---|
| Customer application | Coal mining conveyor scraper replacement |
| Public customer information | Not disclosed in the public inspection report |
| Project objective | Develop and inspect an alternative custom scraper |
| Nominal finished size | 44.5 × 181 × 2191.6 mm |
| Specified hardness | Shore 80–85A |
| Metal component | 6061 aluminum |
| Documented production lot | 150 pcs |
| Validation path | Development, trial production, inspection and field evaluation |
| Commercial evidence | Not included in the public inspection report |
The public inspection report supports the manufacturing and inspection details on this page. It does not document customer identity, field service life, or procurement savings, so those outcomes are not presented as verified results here.
Why This Scraper Required an Engineering Replacement Program
The project was framed as an alternative-source review for an established scraper design. Technical acceptance had to be demonstrated before commercial comparison.
A replacement review should compare more than unit price. The specification for this duty considered:
- abrasion resistance under continuous belt contact;
- tear resistance at highly stressed areas;
- fatigue durability during repeated operation;
- stable performance in a dusty coal-handling environment;
- consistent manufacture of a scraper exceeding two meters in overall length.
This distinction matters in mining procurement. A lower unit price does not create a successful replacement if the blade wears prematurely, develops defects or requires more frequent maintenance intervention.
From Imported Blade to a Defined Engineering Specification

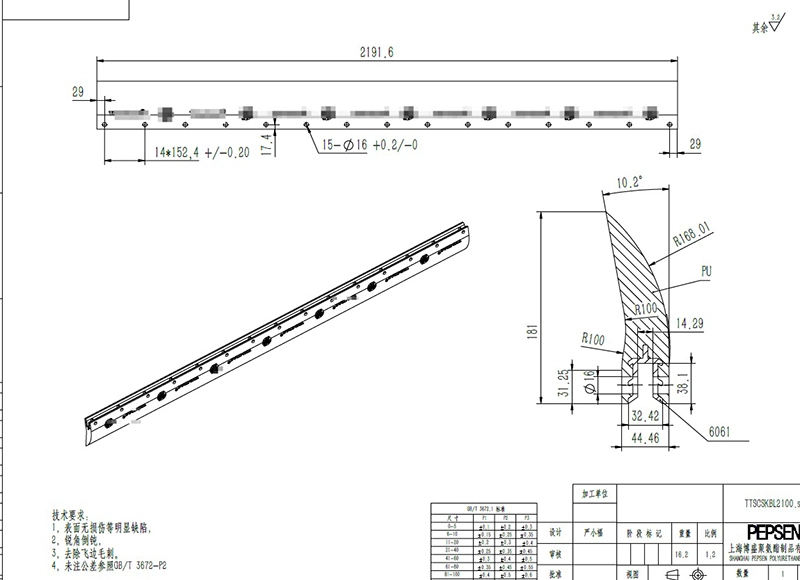

The development team first needed to turn a replacement objective into a manufacturable engineering specification. The project drawing defined the long blade geometry, mounting pattern and cross-section rather than treating the component as a generic polyurethane strip.
The drawing shows a nominal overall length of 2191.6 mm, repeated mounting features, and a purpose-designed cross section. The development task therefore covered both polyurethane selection and repeatable molding of a long component.
For similar OEM projects, Pepsen supports custom polyurethane production based on drawings, samples and application requirements. Its existing polyurethane blade manufacturing capabilities include scraper blades for conveyor belt cleaning and other industrial applications.
Material Analysis Was a Starting Point, Not the Final Answer
Because the existing imported blade had already demonstrated acceptable service performance, the team used it as a technical benchmark. Infrared spectroscopy was used during the analysis stage to study relevant characteristics of the polyurethane system and establish a more informed development baseline.
That did not mean copying a laboratory signature and assuming the job was complete. A scraper blade operating in coal handling must perform as a finished component, not merely look similar in a material analysis.
The formulation work therefore continued through multiple development rounds, with attention to key properties relevant to the failure risks identified in the project:
- hardness for structural support and contact behavior;
- abrasion resistance for continuous friction and material carryback;
- tear resistance to reduce propagation of local edge damage;
- fatigue behavior under repeated operating cycles; and
- aging stability for sustained service rather than short-term sample acceptance.
This was a balancing exercise. Increasing hardness alone does not automatically produce a better conveyor scraper. Material behavior must be considered together with blade geometry, contact conditions, mounting structure and the actual failure mode of the previous alternatives.
The Most Important Development Problem Appeared During Scale-Up
One of the strongest lessons from this project came after initial material development. During trial production, the team encountered raw-material separation and surface peeling. The issue was associated with how functional additives were introduced into the production process.
This meant that a promising formulation was still not ready for batch supply.
The technical and production teams reviewed the manufacturing sequence and repeatedly adjusted:
- the order in which materials were added;
- mixing parameters;
- handling of the functional additive system;
- the molding process for the large scraper component.
After multiple trial runs, the process was stabilized and the observed separation and peeling defects were resolved before volume production.
Why this matters to buyers: a supplier that can make one acceptable prototype is not necessarily ready to produce 150 consistent parts. Prototype success and repeatable batch manufacturing are separate engineering milestones.
What Was Actually Inspected Before Shipment

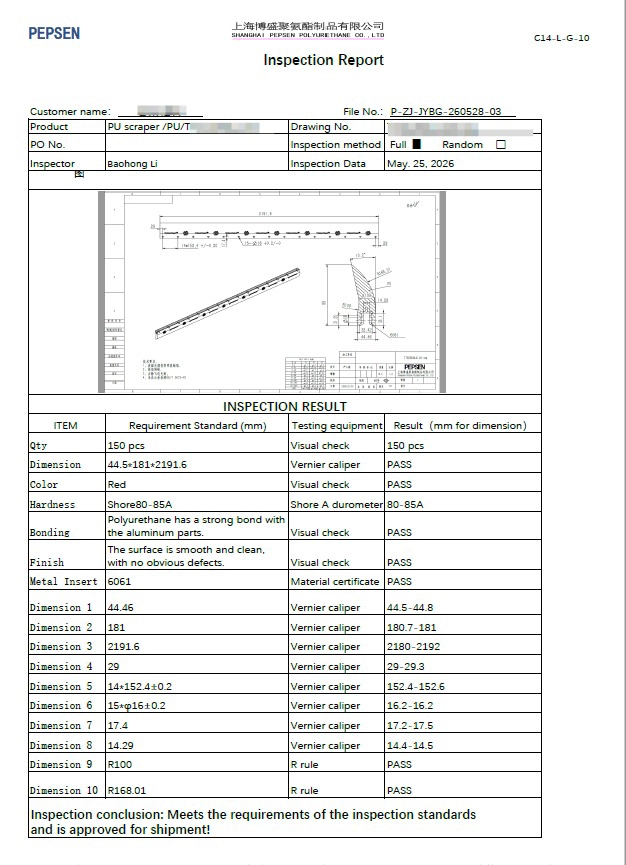

The project includes a documented inspection record rather than product photographs alone. The report dated May 25, 2026 covers 150 pieces and records checks for quantity, dimensions, color, hardness, bonding condition, surface finish, and metal insert material.
Documented inspection items included:
| Inspection Item | Requirement / Record | Inspection Method |
|---|---|---|
| Quantity | 150 pcs | Visual check |
| Nominal size | 44.5 × 181 × 2191.6 mm | Dimensional inspection |
| Color | Red | Visual check |
| Hardness | Shore 80–85A | Shore A durometer |
| Bonding | Strong bond between polyurethane and aluminum components | Visual check |
| Surface finish | Smooth, clean and without obvious defects | Visual check |
| Metal insert | 6061 | Material certificate |
The report also records dimensional results for critical features rather than relying only on the nominal overall size. This is particularly relevant for a long scraper where mounting positions and cross-sectional dimensions can affect installation compatibility.
The available inspection record concluded that the lot met the inspection requirements and was approved for shipment.
From Factory Inspection to Field Validation
Passing factory inspection is necessary but does not establish service life. A replacement program should continue with controlled installation and field evaluation under the actual conveyor conditions.
This field stage was essential because laboratory property comparisons cannot reproduce every variable present on a working conveyor. Real performance is influenced by the conveyed material, repeated friction, installation condition, carryback, operating frequency and the interaction between the scraper profile and belt system.
Field acceptance should be supported by customer-approved records such as installation data, wear measurements, inspection intervals, and acceptance criteria. Those records are not reproduced in the public inspection report.
Commercial Evaluation After Technical Validation
Commercial comparison should follow technical acceptance and include unit price, tooling, freight, inspection, installation, wear life, maintenance, and replacement risk. No percentage saving is claimed without the underlying procurement record.
The important point is that commercial decisions should follow engineering development, process correction, inspection, and field validation rather than a price-only material substitution.
| Review Question | Required Evidence |
|---|---|
| Dependence on a high-cost imported scraper blade | Alternative supplier qualification and approved samples |
| Lower-cost alternatives failed to meet the application requirement | Documented formulation, process controls, and inspection criteria |
| Replacement risk remained high | Factory inspection plus customer-approved field validation |
| High procurement burden | Total-cost comparison supported by procurement and service records |
| No proven local replacement route | Larger orders approved only after documented acceptance |
What Mining and Conveyor Buyers Can Learn from This Project
This case highlights a practical point for procurement teams considering replacement of established conveyor wear components: do not begin with “What is your price for this size?”
A more useful technical review starts with four questions.
1. Why is the current blade being replaced?
The answer may be excessive purchase cost, rapid wear, tearing, unstable quality, long lead time or dependence on a single supplier. Different problems require different development priorities.
2. What has already failed?
Previous unsuccessful alternatives are technically valuable. Their wear pattern, cracks, peeling, deformation or fatigue behavior can help identify what a new solution must improve.
3. Can the supplier scale the part consistently?
This project shows why scale-up matters. The team addressed separation and peeling during trial production before the 150-piece lot recorded in the inspection report.
4. What evidence will support approval?
Depending on the project, this may include drawings, material targets, dimensional inspection, hardness checks, bonding review, sample approval and field testing.
Information to Send for a Custom Polyurethane Scraper Review
Pepsen manufactures custom polyurethane blades and scraper blades and supports OEM/ODM projects based on drawings, samples and working conditions. For mining applications, buyers can also review Pepsen’s polyurethane solutions for mining equipment.
For an initial scraper project review, provide as much of the following information as possible:
- 2D drawing or 3D model;
- existing blade sample, where available;
- overall dimensions and mounting pattern;
- current hardness or material specification;
- conveyed material;
- belt speed and operating schedule;
- primary or secondary cleaner position;
- temperature and moisture conditions;
- current failure mode;
- required quantity;
- target service or validation requirement.
Pepsen has specialized in custom cast polyurethane manufacturing since 2004 and supports engineering review, custom formulation, prototyping, molding, casting, machining and testing for industrial OEM/ODM parts. More information is available on the About Pepsen page.
Frequently Asked Questions
Can you manufacture a conveyor scraper blade from an existing sample?
Yes. A used or new sample can provide a starting point for geometry and material review, especially when complete drawings are unavailable. Application conditions and the failure history of the current blade should also be provided because sample duplication alone does not confirm field performance.
Is Shore hardness enough to specify a polyurethane belt scraper?
No. Hardness is only one part of the specification. Abrasion resistance, tear behavior, fatigue durability, geometry, bonding structure and actual conveyor conditions may all influence service performance. In this project, the documented hardness specification was Shore 80–85A, but the development program went beyond hardness alone.
Can Pepsen produce polyurethane scrapers longer than two meters?
This project provides a documented example of a long-format scraper with a nominal overall length of 2191.6 mm. Feasibility for other large parts depends on geometry, cross section, inserts, tolerance requirements, quantity and molding process.
How do you inspect a custom polyurethane scraper before shipment?
The inspection plan depends on the project specification. For the production lot discussed in this case, documented checks included quantity, dimensions, color, Shore A hardness, polyurethane-to-aluminum bonding condition, surface finish and 6061 metal insert verification.
Does passing factory inspection guarantee service life?
No. Factory inspection confirms whether defined manufacturing and dimensional requirements have been met. Actual service life also depends on the conveyor system, conveyed material, installation, operating conditions, and maintenance, so field evaluation remains a separate approval step.
What is needed to evaluate replacement of an imported scraper blade?
Provide the current drawing or sample, known material information, operating conditions, present failure mode, annual quantity and the performance target for the replacement. Where appropriate, development can proceed through technical review, prototype production, inspection and application validation before larger orders.
